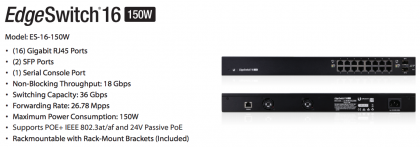

ES-16-150W - EdgeSwitch 16 Порта PoE 150W
ES-16-150W - Управляем PoE+ Гигабитов Суич с 2 х SFP порта
• (16) Gigabit RJ45 Ports • (2) SFP Ports • (1) Serial Console Port
• Non-Blocking Throughput: 18 Gbps • Switching Capacity: 36 Gbps • Forwarding Rate: 26.78 Mpps
• Maximum Power Consumption: 150W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable with Rack-Mount Brackets (Included)
- Марка: UBIQUITI NETWORKS
-
Код:ES-16-150W
-
Тегло:
Бърза поръчка без регистрация
|
ES-16-150W |
|
Dimensions - 443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
|
Weight With Mount Brackets - 2.89 kg (6.37 lb) |
|
Total Non-Blocking Throughput - 18 Gbps |
|
Switching Capacity - 36 Gbps |
|
Forwarding Rate - 26.78 Mpps |
|
Max. Power Consumption: Includes PoE Output - 150W , Excludes PoE Output - 28W |
|
Power Method - 100-240VAC/50-60 Hz, Universal Input |
|
Power Supply - AC/DC, Internal, 150W DC |
|
LEDs Per Port - RJ45 Data Ports - PoE, Speed/Link/Activity |
|
SFP Data Ports - Speed/Link/Activity |
|
Networking Interfaces - (16) 10/100/1000 Mbps RJ45 Ethernet Ports |
|
(2) 1 Gbps SFP Ethernet Ports |
|
Management Interface - (1) RJ45 Serial Port, Ethernet In/Out Band |
|
Certifications - CE, FCC, IC |
|
Rackmount - Yes, 1U High |
|
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV |
|
Operating Temperature: -5 to 40° C (23 to 104° F) |
|
Operating Humidity: 5 to 95% Noncondensing |
|
Shock and Vibration - ETSI300-019-1.4 Standard |
|
PoE Per Port |
|
PoE Interfaces: POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
|
Max. PoE+ Wattage per Port by PSE - 34.2W |
|
Voltage Range 802.3at Mode - 50–57V |
|
Max. Passive PoE Wattage per Port - 17W |
|
24V Passive PoE Voltage Range - 20-27V |
|
Software Information |
|
Core Switching Features: |
|
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED) |
|
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) |
|
• IEEE 802.1D: Spanning Tree Compatibility |
|
• IEEE 802.1S: Multiple Spanning Tree Compatibility |
|
• IEEE 802.1W: Rapid Spanning Tree Compatibility |
|
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs |
|
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping |
|
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support |
|
• IEEE 802.3: 10BASE-T |
|
• IEEE 802.3u: 100BASE-T |
|
• IEEE 802.3ab: 1000BASE-T |
|
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol |
|
• IEEE 802.3ac: VLAN Tagging |
|
• IEEE 802.3ad: Link Aggregation |
|
• IEEE 802.3x: Flow Control |
|
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (G) |
|
|
